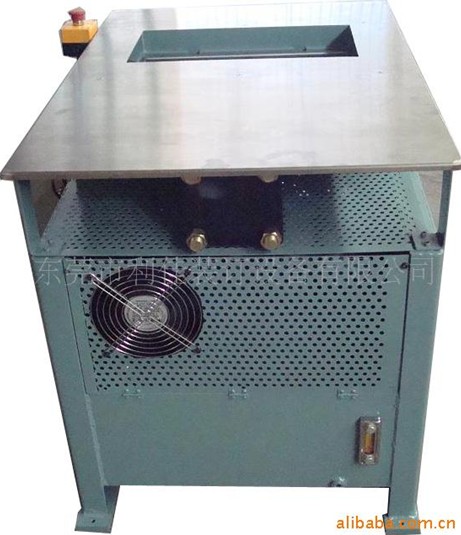

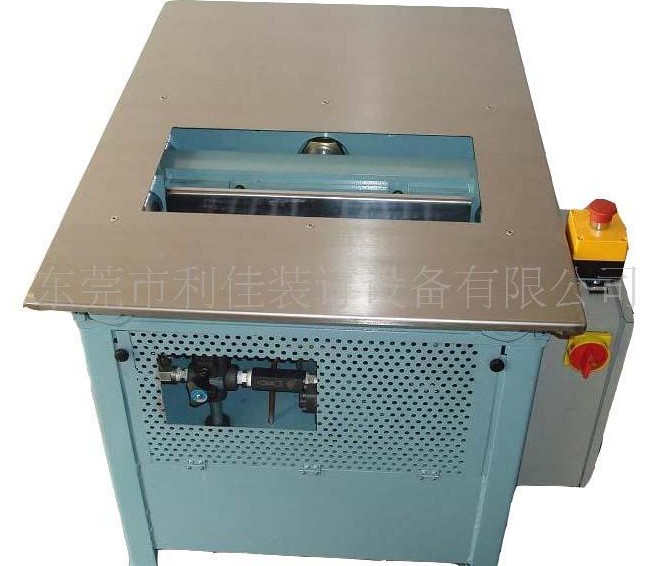

Name：LJ201-30T Hydraulic Book Back Pressing Machine

Model: LJ201-30T

Brand: lijia

The Main Technical Parameters:

型号	LJ201-30T
书芯厚度	20-120 mm
压紧板长度	480 mm
往返速度	10Stroke/Min
最大压紧力	30T
电机功率	7.5 kw
外形尺寸	710*1090*900mm
机器重量	600kg

Feature:

LJ201 hydraulic book back pressing machine was based on design from each

other, to improve shortcomings exposed by the various models in use, to absorb

their advantage; This machine hasthe following characteristics:

1. Elegant, easy to operate, the entire surface of the stainless steel plate to

facilitate Qi Shu put the book

2. Convenient adjustment: the books bit touch switch photoelectric switch, and

there is time to adjust, convenient to the thickness of the book left the book;

equipped with a trip switch the machine on the right side panel, pressure books bit

easy adjustment; knob before the bottom of the machine has a pressure regulator

pressure regulator convenient;

3. Double safety protection; machines right hand side has the bulk of the self-

locking button, press the board itself back of the machine; activities of the board

has a radio eye protection, cover the activities of the board of this electric eye

itself back in order to ensure the personal safety;

4. Native unique design flexibility platen; Usually manufacturers pressure back

machine platen is fixed, the surface of the book block when the pressure Book

appears indentation, to take measures that is, on the platen by the thickness of the

double-sided stickers cardboard to eliminate books indentation . But cardboard

often shedding sliding inconvenient. According to this scenario, the Company

designed to produce a flexible platen has been patented. Pressed books in normal

bookends, platen automatically backswing, eliminating the indentation books wins

pressed;

5. This machine is designed to ensure that the books binding quality book block

by sewing or with page after relatively loose, the back thicker difficult on the

cover or plastic, made out of books after this machine pressed flat, firm, crisp;

common sewn binding books, hardcover book block is pressed.

6. The Secretary may, depending on customer requirements designed to produce

a variety of pressure hydraulic hit back machine. 7 tons, 12 tons, 20 tons, 30

tons, and other models; 12 tons under normal circumstances hit back machine

books has been able to meet the pressure back demand.



Why you choose us?

1.The elasticity pressing plate without creasing.

2.Double safety protection.

3.Pressure is easy to adjustment.

4.whole panel is convenient to put books.

5. Continuous action and not need to prompt .

6. As direct factory,we can be designed more pressure as you need.



About LiJia Comany:

Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in

Chang’an Town, Dongguan city, Guangdong province, China. Which is a leading

professional producing of post-press finishing manufacturer in China, Our main

products are Hardcover Cashing-in machine, book block rounding machine, Book

block rounding machine, Book block ridging machine, book pressing machine,

Hydraulic book packing machine, paperboard slitter, paperboard cross cutter and

so on.

Since established, Our Company always adhere of “Best service, Best quality”

the core idea. And strive to bring customers the best quality and best service. The

company development and design's product, like Book Block Rounding Machine,

book block ridge machine, hydraulic cutting two horns machine and other

products are domestic initiative, Has been successfully applied for national

patents, was the best cost-effective in the similar products. Also can make to

order as each kind of machine according to the customer’s requirement. Welcome

OEM as your need.

We will continue to be customer oriented, TO the best quality and service to win

the trust of customers and work!
