Specifications:

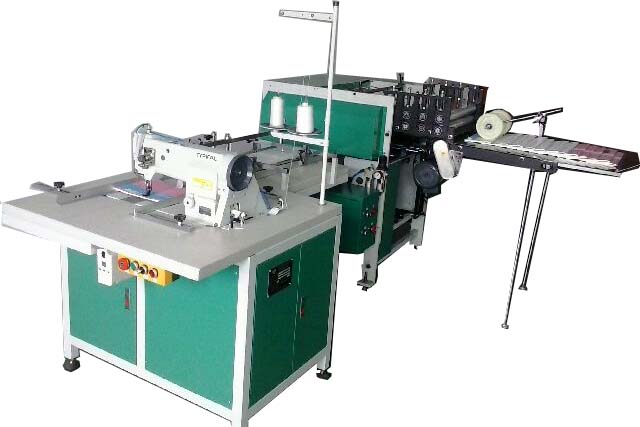

LJ701F Book Central Threading and folding machine is special used for making

cental threading style books. This is new machine in the market, and it could

instead of Saddle Stitching machine to binding notebooks, exercise books,

account books, etc by threading. It can thread very thick books easily with high

production capacity. fast speed, stable performance. It is with multi functions on

line: Manual book feeding, automatic central sewing, automatic thread cutting,

automatic folding, and automatic book pressing, It is the the ideal and first-choice

equipment for mess productions in paper stationary products factories.

Feature:

1. Working speed 800-1800 books per hour.

2. Sewing pitch can adjustable.

3. Suitable for sewing style binding works of notebooks, manual, exercise books

etc.

4. Simple operation and easy to learn.

5. Machine used high sensitivity optical fiber sensor, Automatic sewing without

manual step On/ Off.

6. Sewing wire can automatically cutting between books.

7. Books sewing and folding on completed.

8. Machine running much higher speed than traditional labour. Much lower cost

and much stable stitching.

The Main Technical Parameters:

Model	LJ701F
Max. Paper Size	600*470mm
Thickness	4-150 Pages
Speed	500-1800 Double Paper book
Power	380V/ 3Phase/ 50Hz/ 60Hz/ 5.2Kw
Atmospheric pressure	6-8 Pa
Dimensions	2830*1850*1580mm
Net Weightd	600kg

About LiJia Comany:

Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in

Chang’an Town, Dongguan city, Guangdong province, China. Which is a leading

professional producing of post-press finishing manufacturer in China, Our main

products are Hardcover Cashing-in machine, book block rounding machine,

Book block rounding machine, Book block ridging machine, book pressing

machine, Hydraulic book packing machine, paperboard slitter, paperboard cross

cutter machine and so on.

Since established, Our Company always adhere of “Best service, Best quality”

the core idea. And strive to bring customers the best quality and best service.

The company development and design's product, like Book Block Rounding

Machine, book block ridge machine, hydraulic cutting two horns machine and

other products are domestic initiative, Has been successfully applied for national

patents, was the best cost-effective in the similar products. Also can make to

order as each kind of machine according to the customer’s requirement.

We will continue to be customer oriented, TO the best quality and service to win

the trust of customers and work!





Contact us:





If you have time, We are warmly welcome you to visit our factory!

Your success is our business!
