LJ206-7T 对开型油压压平机(下压）

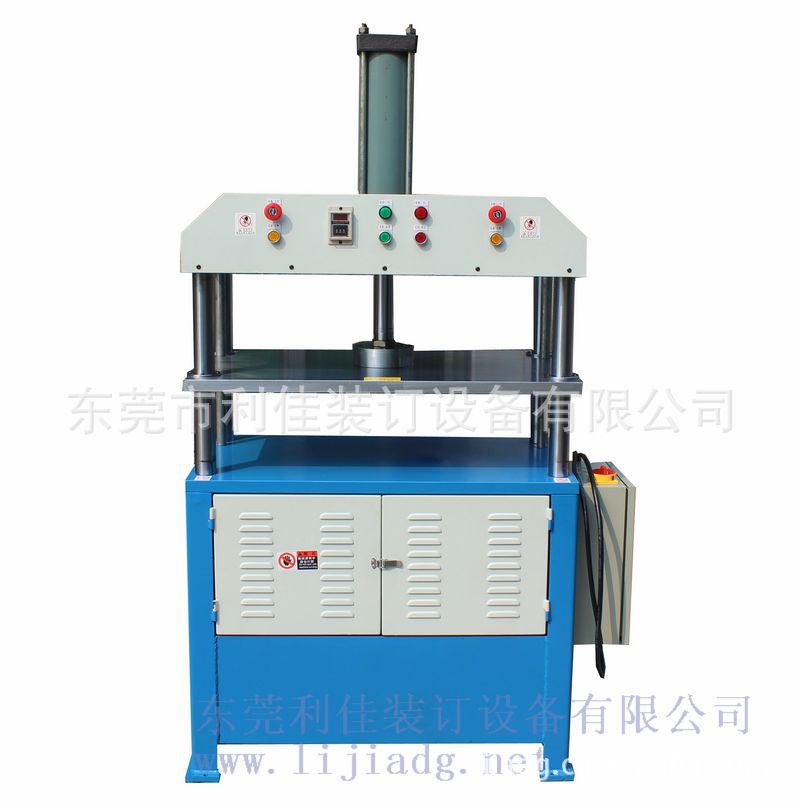

Product name:LJ206-7T hydraulic pressing machine   Product item:LJ206-7T
  Introduction：

Name: LJ206-7T Single-head hydraulic pressing machine

Model: LJ206-7T

Brand: LIJIA

http://player.youku.com/player.php/sid/XNTk4Mzg1MDc2/v.swf

Specifications:


LJ206-7T Single-head Hydraulic pressing machine used for the flatten of the book block, account

books, notebooks, paper etc, to made their bonded firmly and more flat.

Max pressure is 7T, the movable platen press down through the top installed of the oil cylinder, put

books in the fixed board, It is easy to display and not easy to tilt.

This machine adopts hydraulic mode. The pressure can be adjustment, books' pressure time is

adjustment. With adjustable stroke and holding pressure when stop and other functions.


It has double pressure plate and high efficiency. elegant appearance and simple structure. Also easy to

operate. It is one of the best machine that all need to pressed flat occasions.

As direct factory, we can made the pressing machine in any pressure or pressing book size as you

need.

The main Technical Parameters:

Model

LJ206-7T Single-head Hydraulic book pressing machine

Max.Work Pressure

7T

Working Travel

350mm

 Area of  Pressing Board

780*540 mm

Book thickness

90mm—440mm

Power Requirement

380V，3Phase

Motor Power

3.7kw

Dimensions

L935*W590*H1360mm

Net Weight

600kg







About LiJia Factory:

Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in

Chang’an Town, Dongguan city, Guangdong province, China. Which is a leading

professional producing of post-press finishing manufacturer in China, Our main

products are Hardcover Cashing-in machine, book block rounding machine,Book

corner cutting machine, Book block ridging machine, book pressing machine,

Hydraulic book packing machine, paperboard slitter, paperboard cross cutter and

so on.

Since established, Our Company always adhere of “Best service, Best quality”

the core idea. And strive to bring customers the best quality and best service.

The company development and design's product, like Book Block Rounding

Machine, book block ridge machine, hydraulic cutting two horns machine and

other products are domestic initiative, Has been successfully applied for national

patents, was the best cost-effective in the similar products. Also can make to

order as each kind of machine according to the customer’s requirement.

We will continue to be customer oriented, to the best quality and service to win

the trust of customers and work!



Contact us:



If you have time, we are warely welcome you to visit our company!

Your success is our business!
