Name: LJ702 Double coil binding machine
Model: LJ702
Place of origin: Dongguan
Video: http://v.youku.com/v_show/id_XNDAyMTkxNjUy.html
http://player.youku.com/player.php/sid/XNDAyMTkxNjUy/v.swf
Specifications:

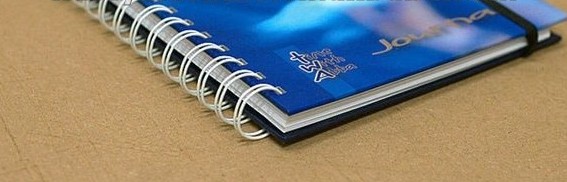

The machine is widely used for binding of notebook, workbook, calendar and so on.
It has the functons of automatic cutting, skip binding(up to nine-step), spiraling and
closing, so the workers can be saved and waste can be reduced. The machine uses i mported step-servo motor, touch screen, electronic parts and pneumatic component.
Optional hanger attachment. It has the functons of automatic cutting, skip binding
(up to nine-step), spiraling and closing, so the workers can be saved and waste can
be reduced, The machine uses imported step-servo motor, touch screen, electronic
parts and pneumatic component. Optional hanger attachment.
Feature:
1. This machine was researched & developed on the base of Japanese & South
Korea's advanced technology. It is the best multifunctional binding machine with
the highest efficiency in China.
1. Can bind up to 800-2000 books per hour.

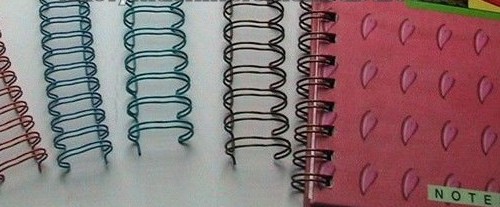

2. Double wire Diameters 1/4''-7/8''. pitch 1:2, 1:3.
3. Book Width 75-520mm.
4. Auto hanger attachment.
5. Multi function.
6. Auto error reminder.
7. Multi language interface design according to customer requested.
8. Automatic transmision books, and allow workers to easily operate.
9. The actuating element of the machine to switch to a new slide type to ensure
long life and stability.
The main technical parameters:
Name LJ702 Double coil binding machine
Model LJ104
The document feed method manually
The coil specification diameter1/4＂-7/8(Tooth pitch 1:2，1:3)
Max. paper width 520mm
Max. binding width 507mm
Min. paper width 75mm
Working speed 800-2000 time/h
Working size 660×300mm
Power 220V/ 1Phase/ 50Hz/ 60Hz/ 0.2kW
气压 6-8Pa
Host size 1000×760×1230mm
Net Weight 510kg
Line plans size 490×760×1230 mm
installation area of space 1800×760×1230mm
About LiJia Factory:
Established in 2004
Chang ’ an Town, Dongguan city, Guangdong province, China
leading professional producing of post-press finishing manufacturer in China,
We have full sets of Hardcover binding machine series, Such as Book block
pressing Machine, Book Bundling Machine, Book block rounding machine,
Book block ridging machine, Hydraulic book pressing machine, Hardcover
Casing-in Machine, Book corner cutting machine, Pressure grooving machine,
Paperboard slitter, Paperboard cross cutter and so on.
Since its establishment, The Company always adhere the core idea of “ Best
service, Best quality ” , and strive to bring the best quality and best service to
each customers. Our company produces the domestic initiative such as
Book Block Rounding Machine, book block ridge machine, Two-head cutting
corner machine, is welcomed by users. And has been successfully applied
for national patents, was the best cost-effective in the similar products. Also
can make to order as each kind of machine according to the customer ’ s
requirement.
If you are interested in any of our products or would like to discuss a custom
order, please feel free to contact us, We are looking forward to forming
successful business relationship with new clients around the would in near
future.
Dongguan LiJia Will continues to be oriented to the interests of customers,
with the best quality and service to win the trust of customers!
Contact us:
If you have time, we are warely welcome you to visit our company!
Your success is our business!
